BUCKET HALVES
FAST AND FLEXIBLE
Bucket halves for chip handling are available as accessories for Standard, HD, BIO and Construction grapples in 120-7000 litre sizes. These bucket halves are suitable for the 015-225 LB HSP Gripen and mean that you quickly switch from the timber grapple to the chip bucket and vice versa. Quick and easy. These buckets are also available in a narrower design for clearing out ditches and the like. You can switch over in less than 20 minutes. Saving both time and money for your business. Why make it more complicated?
| Buckethalves | 120l | 130l | 200l | 300l | 370l | 500l | 650l | 830l | 1200l | 1400l | 2000l | 2500l | 4000l | 7000l |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

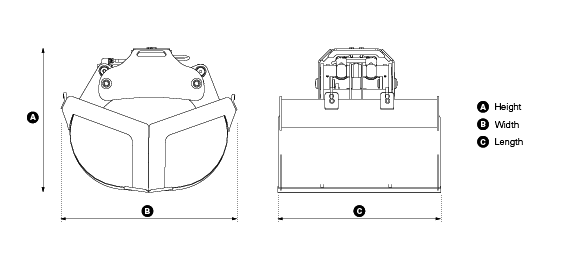

| A: Height (mm) | 820 | 825 | 905 | 1045 | 885 | 1040 | 970 | 960 | 1150 | 1190 | 1410 | 1590 | 1960 | 2400 |
| B: Width (mm) | 1170 | 1175 | 1215 | 1265 | 1065 | 1265 | 1265 | 1235 | 1460 | 1400 | 1700 | 1850 | 2150 | 2650 |
| C: Length (mm) | 430 | 430 | 540 | 540 | 1000 | 900 | 1200 | 1500 | 1500 | 1725 | 1820 | 1820 | 2020 | 2020 |
| Weight (kg) | 80 | 75 | 110 | 125 | 150 | 150 | 200 | 250 | 280 | 300 | 320 | 390 | 710 | 1090 |
Scroll sideways » »
| Grapple dimensions | 015 | 020 | 025 | 028 | 035 | 040 | 055 | 080 | 100 | 150 | 225 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 120l | ✔ | – | – | – | – | – | – | – | – | – | – |
| 130l | – | ✔ | – | – | – | – | – | – | – | – | – |
| 200l | – | – | ✔ | ✔ | – | – | – | – | – | – | – |
| 300l | – | – | – | – | ✔ | ✔ | – | – | – | – | – |
| 370l | – | – | ✔ | ✔ | – | – | – | – | – | – | – |
| 500l | – | – | – | – | – | ✔ | – | – | – | – | – |
| 650l | – | – | – | – | ✔ | – | – | – | – | – | – |
| 830l | – | – | – | – | ✔ | ✔ | – | – | – | – | – |
| 1200l | – | – | – | – | – | – | ✔ | – | – | – | – |
| 1400l | – | – | – | – | – | – | ✔ | – | – | – | – |
| 2000l | – | – | – | – | – | – | – | ✔ | – | – | – |
| 2500l | – | – | – | – | – | – | – | – | ✔ | – | – |
| 4000l | – | – | – | – | – | – | – | – | – | ✔ | – |
| 7000l | – | – | – | – | – | – | – | – | – | – | ✔ |
